Accessing Katana
Anyone at UNSW can apply for a general account on Katana. This level is designed for those that think Katana would suit their research needs or will typically use less than 10,000 CPU hours a quarter. This level still gets access to the same level of support including software installation, help getting started or running their jobs. The only difference is the number of compute jobs that can be run at any time and how long they can run for - general users can only use a 12 hour Walltime.
If your needs require more CPU hours or consulation, some Faculties, Schools and Research Groups have invested in Katana and have a higher level of access. Users in this situation should speak to their supervisor.
Requesting an Account¶
To apply for an account, please send an email to restech.support@unsw.edu.au, giving your zID, your role within UNSW and the name of your supervisor or head of your research group.
Connecting to Katana¶
Info
When you are connecting to Katana via katana.restech.unsw.edu.au you are connecting to one of two login nodes katana1.restech.unsw.edu.au or katana2.restech.unsw.edu.au. If you have a long running Tmux open, you will need to login to the node on which it was started.
Platform
From a Linux or Mac OS machine you can connect via ssh in a terminal:
laptop:~$ ssh z1234567@katana.restech.unsw.edu.au

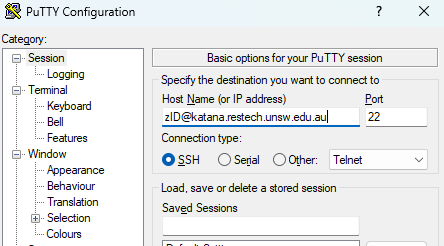

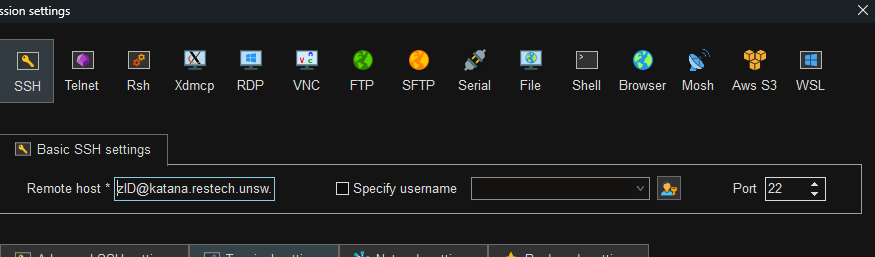

From a Windows machine an SSH client such as Putty or MobaXTerm is required.

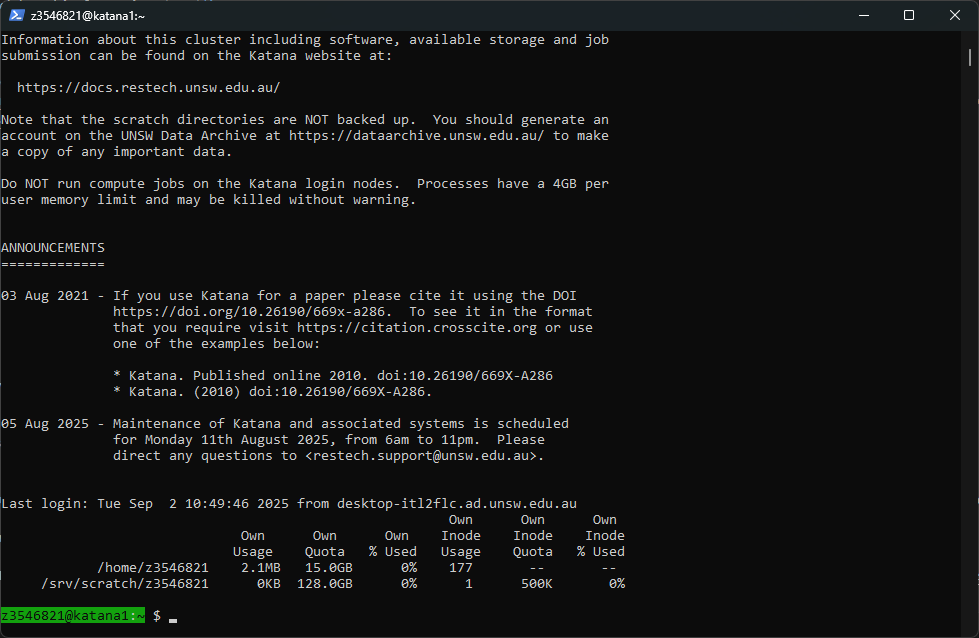

If you are comfortable using PowerShell, OpenSSH is available on recent Windows versions. If not present, it can be installed on Windows 10.
You can run a Linux environmet directly on Windows using Windows Subsystem for Linux (WSL).
There are two ways to install WSL on your system:
- On UNSW Windows standard operating environment (SOE) machines you can open the Company Portal App and from there install one of the Linux distrubtions through the 'Apps', the same as you would other applications.
- Manually enable WSL in PowerShell and then install a Linux distribution through the Microsoft Store.
Using WSL will not only let you connect to katana with SSH, but also provides many GNU/Linux tools that are useful when working with HPC and research data.
SSH KeepAlive¶
To stop your connection disconnecting after some idle time, you can send null packets to keep your session alive. You want to change the frequency of these packets from 0 (none) to a small time interval, say 60 seconds. The configuration differs depending on the SSH client used.
On PuTTy: Category -> Connection -> "Seconds between keepalives"
On MobaXterm: Settings -> Configuration -> SSH -> SSH keepalive
On Linux and WSL you send keepalive packets for all servers by editing ~/.ssh/config and adding the lines
Host *
ServerAliveInterval 60
Graphical sessions¶
Warning
Please use Katana OnDemand (kod.restech.unsw.edu.au) if available for your application. It is significantly easier to use for newcomers.
Some software - Ansys, Jupyter Notebooks, Matlab, R and RStudio being among the most popular - are easier with a graphical session. If you require an interactive graphical session to Katana then you can use either the FastX web or desktop client.
FastX web client¶
Katana graphical sessions can be started at https://katana.restech.unsw.edu.au.
Login and double click the MATE entry on the left.
Select which login server to start your session on, or leave it on automatic.
FastX desktop client¶
The FastX desktop client can be downloaded from https://www.starnet.com/download/fastx-client
Start FastX and create a session for Katana. The details that you need to enter for the session are:
Host: katana.restech.unsw.edu.au
User: zID
Name: Katana
Warning
The usability of a graphical connection to Katana is highly dependent on network latency and performance.
Once you have logged into a Katana desktop, you should start a terminal
Then run an interactive session. Here you can see a command similar to what you would run for an interactive session with 8 CPUs and 16 GB for one hour. You will probably need more time. You can tell your interactive session has started when you see the name of the machine change - in this image I am on k247.
qsub -I -X -l select=1:ncpus=8:mem=16gb,walltime=1:00:00
Once that's started, you can load the modules and run the command line name of the software you want. That is how you run Graphical Interfaces or GUIs using Katana's grunt.
